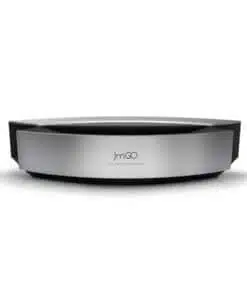

JmGo S1 laser TV Smart Home Theater Smart Projector 3000ANSI

https://www.youtube.com/watch?v=lpX1SkOOYIM

S1 can be installed upside down

The JmGO S1 HD 300吋 Laser TV S1 uses a reflective ultra-short-focus projection technique with a screen projection ratio of 0:25:1. It takes only 0.3 meters to project a 108-inch screen. When the distance is 1 meter, the projected image is up to 200 inches. Standing in front of a huge projection screen, it will definitely be deeply shocked by its grandeur.
With a lumens of up to 3000 ANSI, the colors are bright and bright even when viewed in a bright environment. In addition, you can adjust to the smart eye protection mode to adjust to the most suitable viewing brightness.
From high-pressure mercury lamps, halogen lamps, xenon lamps, to LEDs, hybrid lasers… The history of projection is the evolutionary history of light sources.
S1 laser light source projection, let the smart cinema officially enter the laser era.

Brand: JmGo (Nuts)

Model:S1

Color: Silver sandblasting

Material/technology: Magnesium Aluminum Alloy/ Carbon Fiber/Engineering Plastics

Type: Commercial and residential

Projection screen size: 50-300 inches

Recommended screen size: 90-120 inches

National standard brightness (ANSI lumen): 3000 ANSI

Standard resolution: 1920X1080DPI

Compatible with the maximum resolution: 4K

Projection light source: laser

Whether to support 2D to 3D: No

Operating system: ANDROID5.0 above

Lamp life: more than 30,000 hours

System Configuration

Processor: 64-bit processor

Number of cores: quad-core

System Memory: 2GB DDR3

Display chip: DMD

Storage capacity: 16GB EMMC FLASH

Extended support U disk, removable hard disk

Projection specifications

Projection lens: high transmittance coating lens

Brightness uniformity: >98%

Digital Zoom: Support

Projection distance: 0.3-1.7M

Screen aspect ratio: 16:9

Projection ratio: 0.25:1

Color: 1.07 billion colors

Projection: Forward

Keystone Correction: Vertical

Correction range: ± 40 degrees

Adjustment function: automatic

Display scanning frequency: 60HZ

Video format: Support H.264, VP9, ??H.265 and other 4K format hard decoding, H.265, 4K2K@60HZ10BIT ultra high-definition decoding

Input terminals: HDMI2.0, HDMI1.4, USB3.0X2, USB2.0, RJ-45, MINI USB, AVIN, TVTUNER

Output terminals: AUDIO OUT, S/PDIFOUT

Dustproof: Yes

connection

USB interface :USB3.0X2, USB2.0

HDMI interface: HDMI2.0, HDMI1.4

Network Interface: RJ-45 Ethernet Interface

Audio Interface: AUDIOOUT, S/PDIF

Other interfaces: MINI USB, AVIN, TV TUNER

Wireless projection function: support

Bluetooth : Support

U disk live broadcast: Support

U disk live support video format: support for AVI.MPGVDAT.V0B|DIV.M0V.MKV.RM.RMVBMP4MJPEG

.TS.TRPWMV.ASF.FLV

Electrical Specifications

Power Supply: AC110-24OV

Total power consumption (W): <450W

Audio Power Consumption (W): Treble 10WX2, Bass 20WX2

Noise (DB): <30DB

Speaker: 50W

Appearance parameters

Net weight (KG): 13

Gross weight (KG): 15

Size (MM): 680MMX370MMX140MM

With packaging size (MM): 820MMX470MMX280MM
